# The Orenda Calculator™

Orenda's Tool to Rule Your Pool

Current Levels

Desired Levels

8.21
8.17
57.2
40.1

### Carbonate Alkalinity

The LSI equation needs your Carbonate Alkalinity, which requires a correction against Total Alkalinity (TA) based on Cyanuric acid (CYA) at a given pH. The Orenda calculator makes this correction automatically for you.

Input your Total Alkalinity into the calculator. As you adjust your CYA level, the LSI will change accordingly.

### TDS and Salt

The LSI equation needs your Total Dissolved Solids (TDS) level. TDS includes salt. We have this named "TDS/Salt" for two reasons:

• Many people forget about salt, or do not associate salinity with TDS. It's very important to include it for an accurate LSI calculation.
• This is also a dosing calculator. So if you need to add salt to your pool, this will tell you how much you need for your pool.

Input your Total Dissolved Solids, including salt, into the calculator. If you do not have a TDS meter, you can estimate TDS by adding salt + calcium + total alkalinity + CYA. But a TDS meter is more accurate.

### pH Ceiling

We have included the pH ceiling on the Orenda Calculator to show you how high your pH will naturally rise.

The more dissolved carbon dioxide (CO₂) in the water, the lower the pH, and vice versa:
↑CO₂ dissolved = ↓pH
↓CO₂ dissolved = ↑pH

Henry's Law of physics explains why CO₂ must off-gas from a swimming pool to equalize with the air above the pool. The same exact physics applies to carbonated drinks that eventually go flat.

The precise point at which CO₂ is in equilibrium with CO₂ above the water is known as pH(eq), or as we at Orenda call it, the pH ceiling. This is the moment your pool is "flat". It is the highest your pH can naturally rise at a given carbonate alkalinity and temperature.

Factors such as auto-covers, acid feeders and trichlor feeders can suppress pH, but otherwise, the pH is heading toward the pH ceiling, thanks to physics.

Warning: pH and alkalinity adjustments/dosing become distorted and inaccurate above 150 ppm TA. If you currently have over 150 ppm TA, reduce it no more than 20 ppm at a time with diluted acid until your desired level.

If you're trying to raise TA over 150, this too will cause issues like a rapidly-rising pH (elevated pH Ceiling) and an LSI that will likely lead to scale formation. It will also increase the amount of acid needed for pH corrections.

Error: The numbers you have inputted for CYA and Alkalinity are not possible. Your Cyanurate Alkalinity is higher than what you have inputted for Total Alkalinity. Double check your chemistry readings and try again.

If your CYA is over 100 ppm, we recommend diluting water to reduce it. The higher your CYA, the slower your chlorine, and that can pose health and safety risks to bathers. We at Orenda recommend less than 50 ppm CYA.

### Error: Negative Alkalinity

Your carbonate alkalinity is below zero. Either your total alkalinity is too low, or your CYA and/or Borate levels are too high. Double check your inputs. If your imputs are correct, either raise total alkalinity, or drain and dilute your pool to reduce CYA and/or Borates.

### LSI

The Langelier Saturation Index (LSI) is the objective measurement of water balance, based on the saturation of calcium carbonate (CaCO₃). Too much (high LSI) leads to scale, and too little (low LSI) leads to etching damage. Aim to keep your water from becoming RED or PURPLE on this calculator all year long.

Color Legend:

• LSI ≥ 0.3: Scale forming
• 0.00 to 0.30: Ideal balance
• -0.30 to -0.01: Acceptable balance
• LSI < -0.3: Etching/Aggressive

### Borate

While Orenda does not endorse the use of borates in swimming pools, many find borates helpful for maintaining water balance. Specifically, borates are used for slowing the natural rise in pH.

Borate is a buffer against a rise in pH, much like carbonate alkalinity is a buffer against a reduction in pH.

Like CYA, borates contribute to Total Alkalinity (TA), and therefore must also be deducted when calculating the water's carbonate alkalinity (or corrected alkalinity), which is required for the LSI equation.

The Orenda Calculator makes all of these corrections for you automatically. Just input your borate level and the other factors, and the LSI will adjust on the calculator in real-time.

Be aware: For health and safety reasons, never exceed 50 ppm borate in your water. Experts recommend 30-50 ppm. Learn more about borate toxicity here.

### Decrease pH

This calculator only calculates between current and desired levels (left and right sides). If you are making a pH and alkalnity adjustment, only adjust the alkalinity, as pH will be affected too. In most cases, raising pH with soda ash is unnecessary because pH naturally rises due to CO₂ loss.

### How to Decrease Alkalinity

This acid dose is the total amount of acid required to achieve your desired alkalinity. We strongly advise against reducing TA more than 20 ppm at a time.

If you're adding too much acid at once, it can cause an LSI violation and damage to your pool surface and equipment. Take your time with alkalinity; it is not a race! Reduce alkalinity over several treatments with diluted acid. The more dilution, the better. When in doubt, use less acid and dilute it a minimum of 10:1 in buckets of water.

When reducing alkalinity, give your pool time to aerate and off-gas CO₂ so the pH can rise. If you have an automatic cover, leave it open during this process, otherwise pH will be suppressed and problems can occur.

Learn how to properly lower alkalinity here.

### The colors of the LSI

#### What the colors mean on the Orenda App

At the bottom of the Orenda App, the LSI number can be four different colors. From high-LSI to low:

• (> +0.30) PURPLE means your water is over-saturated with CaCO3. This is scale-forming water.
• (0.00 - +0.30) GREEN is ideal LSI balance. This should be the target range.
• (-0.30 - -0.01) YELLOW is acceptable, but not desired. You're close to balance, but not quite there.
• (< -0.30) RED is aggressive water that will etch cement and damage equipment. The lower, the worse!

## Calculator instructions

1. At the top left, select whether the pool is residential or commercial
2. At the top right, input gallons of the pool
3. The left side is your current water chemistry. Test your water and adjust each item with the +/- buttons on the sides, or by tapping the number and typing manually.
4. The right side is your desired water chemistry. Each number can be adjusted the same way as the left side.
5. The goal is to adjust the right side to an LSI value as close to zero (0.00) as possible.
6. Be sure your right side (desired water chemistry) is realistic, based on your current water chemistry. For example, dropping the pH while also trying to raise Alkalinity will be counter-productive.
7. The Langelier Saturation Index (LSI) value adjusts automatically as you work. The color will be GREEN when the LSI is in the ideal range.
8. When the right side has an LSI value that works for you, tap GET DOSAGE at the bottom.
9. The results page will appear with two chlorine options for Calcium Hypochlorite and Liquid Bleach. Use one or the other, not both. If you use Trichlor or a different type of chlorine, this calculator does not include dosing for it, so adjust as necessary on your own.

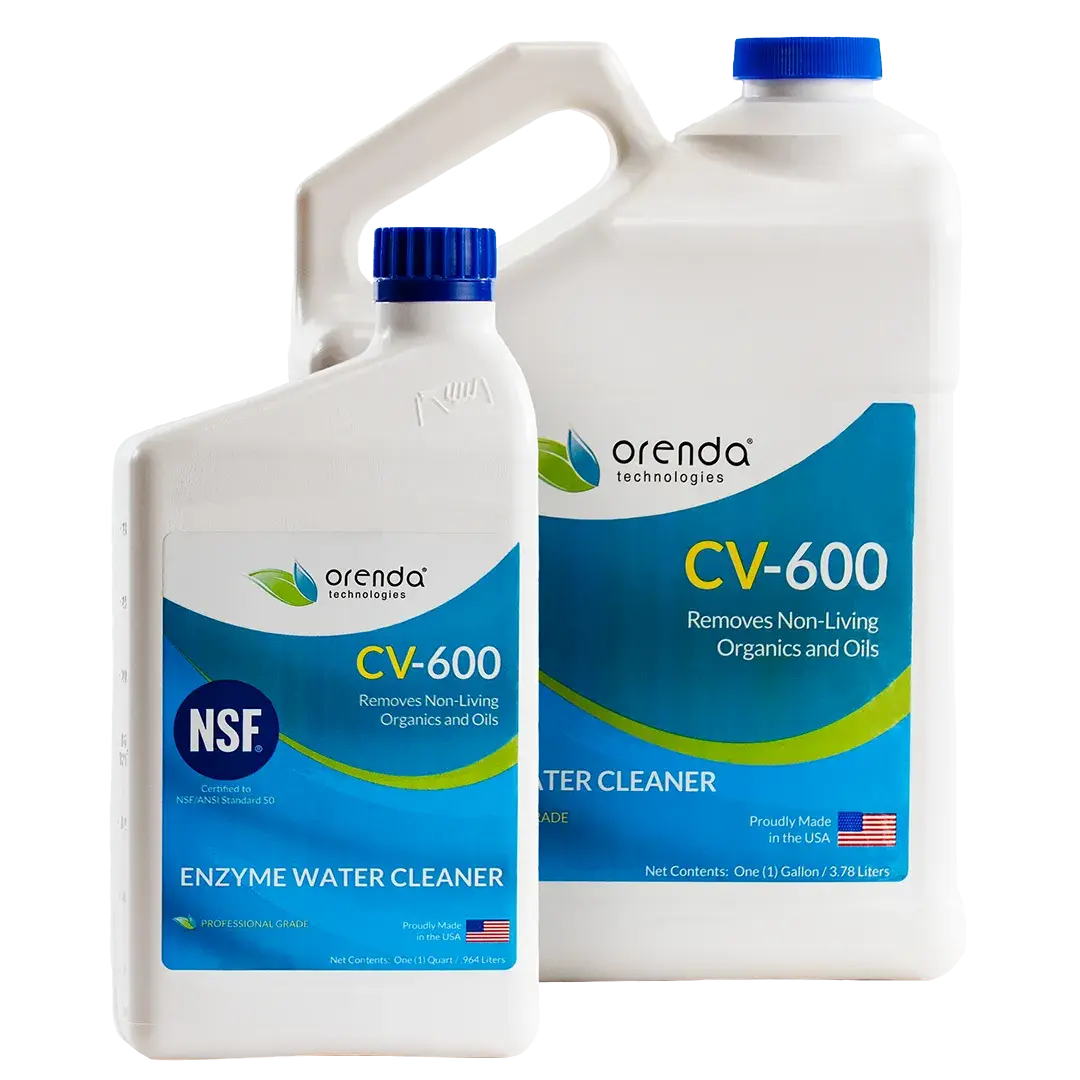

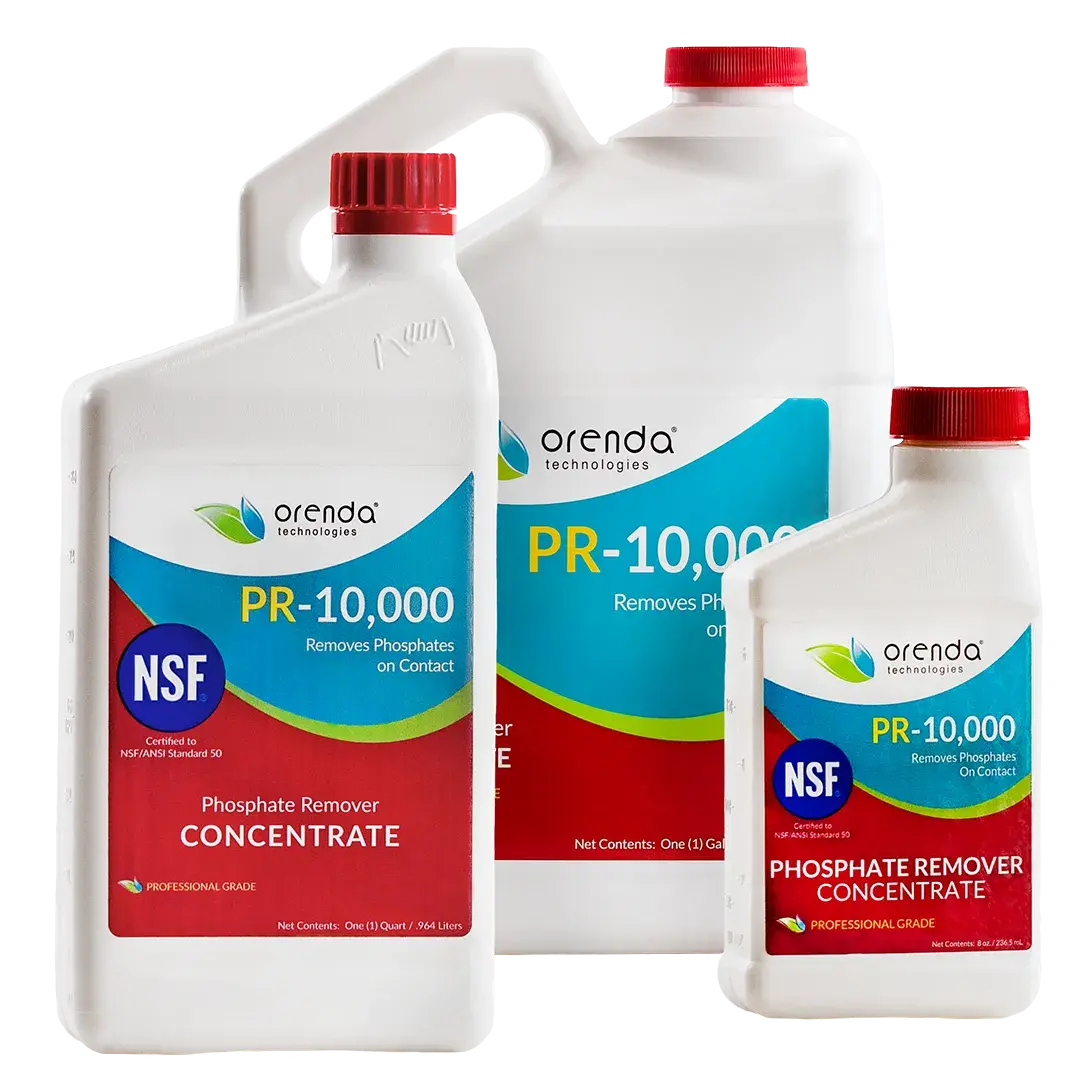

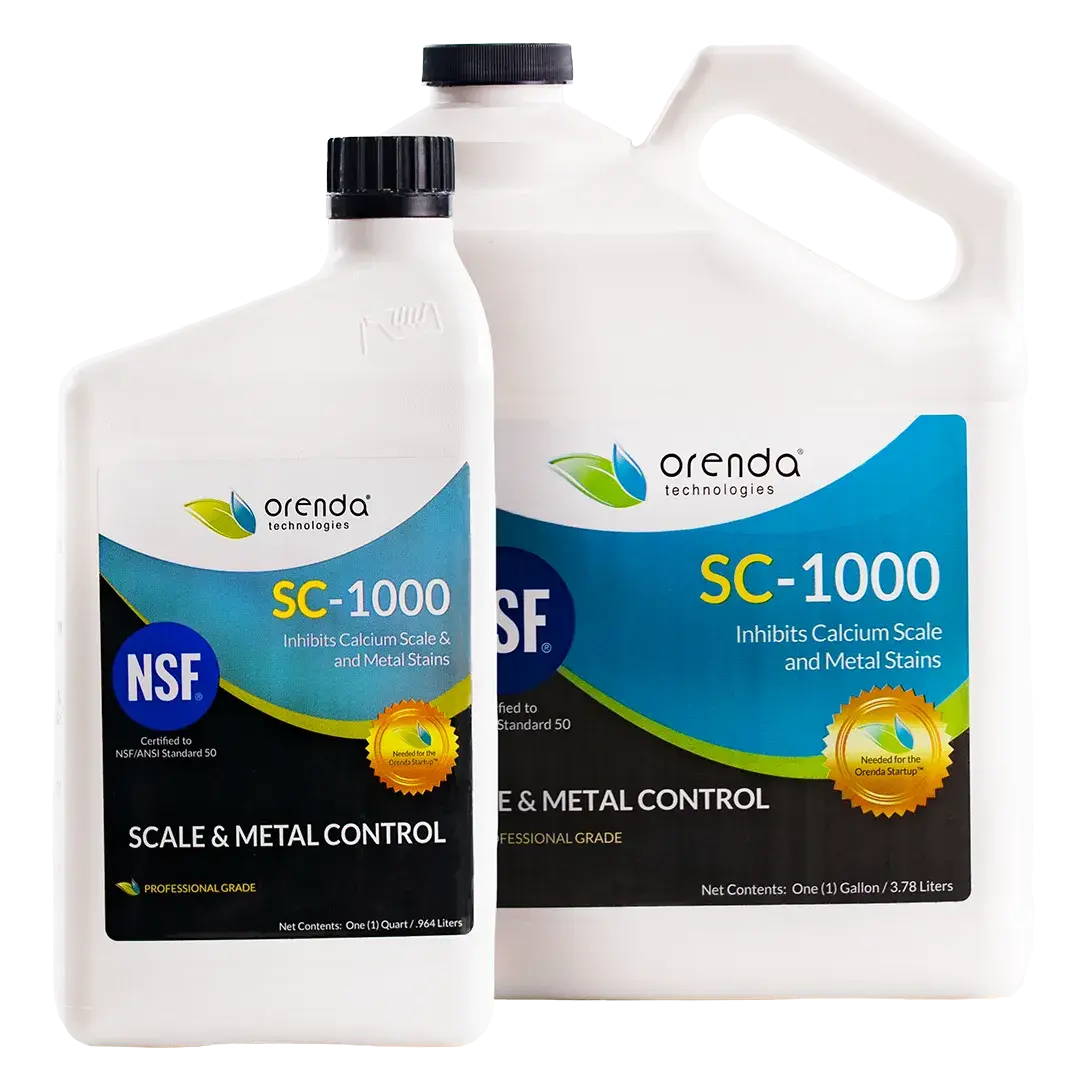

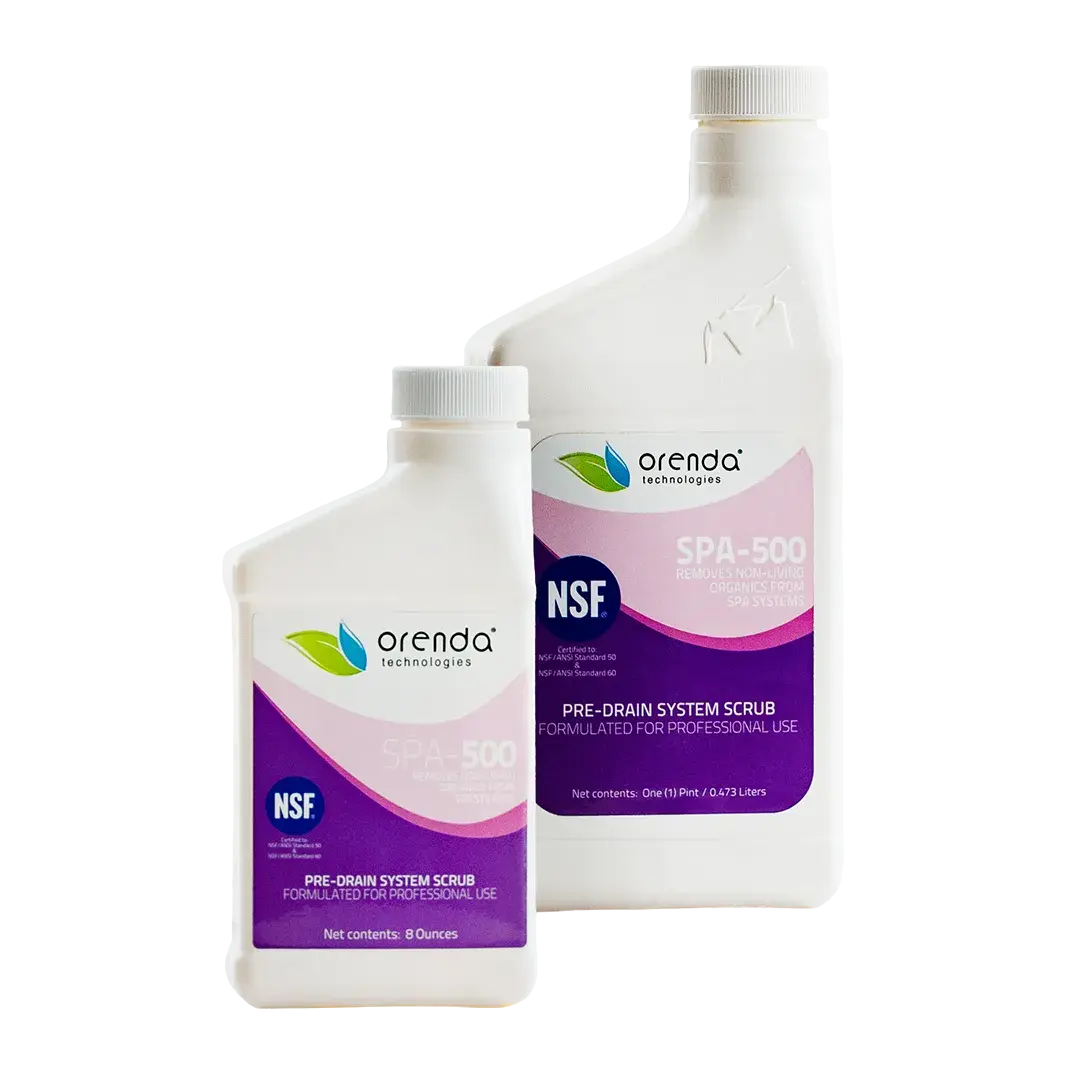

10. Below the standard chemicals are Orenda products and how to dose them. If you do not use Orenda products, these can be ignored. they will not impact your LSI score.
